Primary Vehicle Information
- Price: Call For Pricing
- EngineKubota D-902
- Power21.6 HP
- Vehicle ConditionNew
- Fuel Tank Capacity10 Gallons
- Fuel TypeDiesel
- DoorsN/A
Vehicle Description
Standard Features

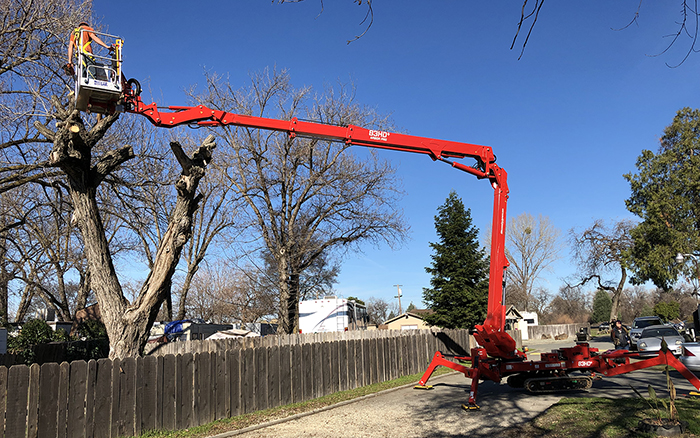

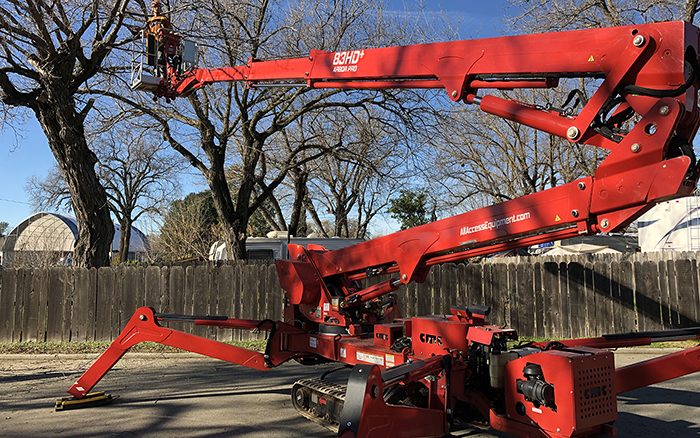

- 83 ft working height
- Up to 46 ft lateral outreach
- 43 ft up and over reach
- 35″ wide transport mode (will enter virtually any doorway)
- 15″ ground clearance with tracks
- Turbo Hydraulics: operate 3 boom functions simultaneously
- Automatic boom park

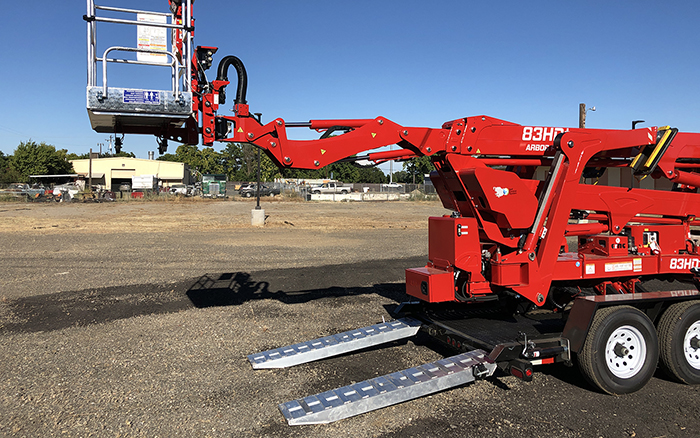

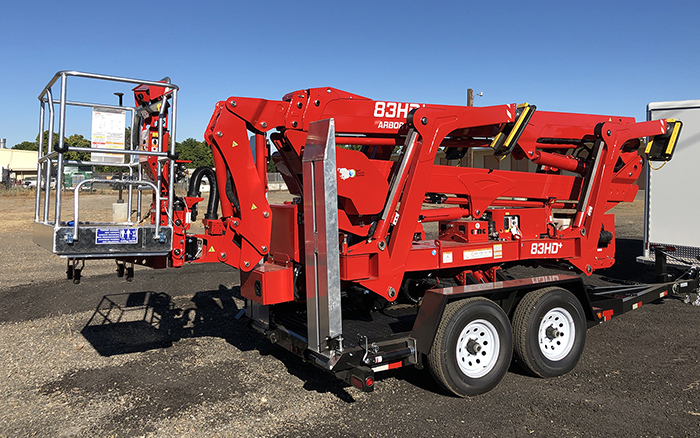

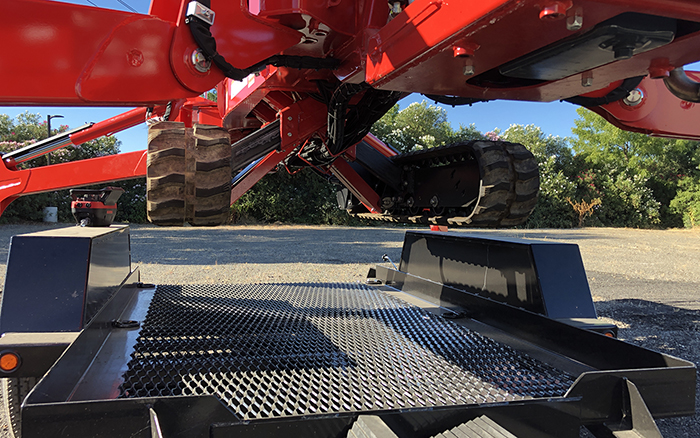

- Self-load/unload and operate as a rear mount forestry bucket truck

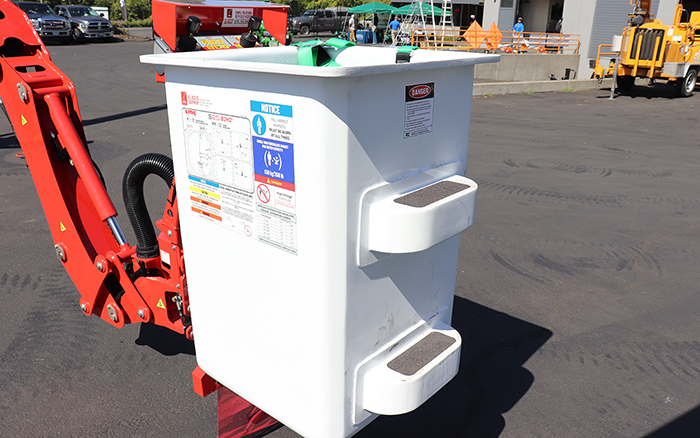

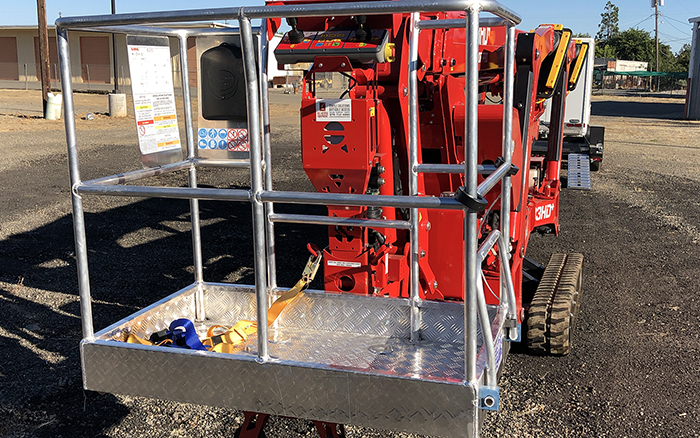

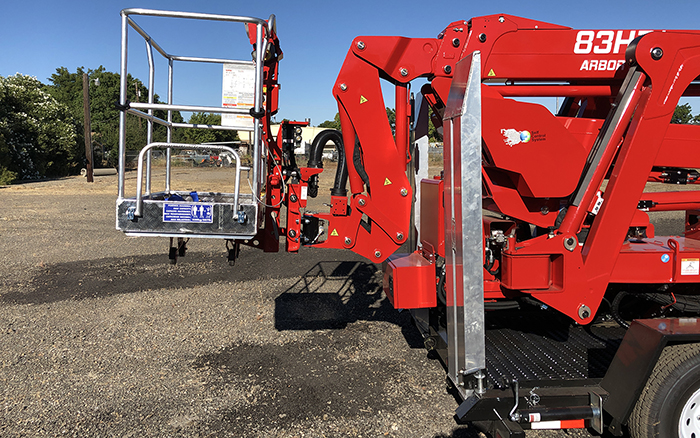

- Single-man fiberglass bucket with quick connect bracket (24″ x 24″ x 39″)

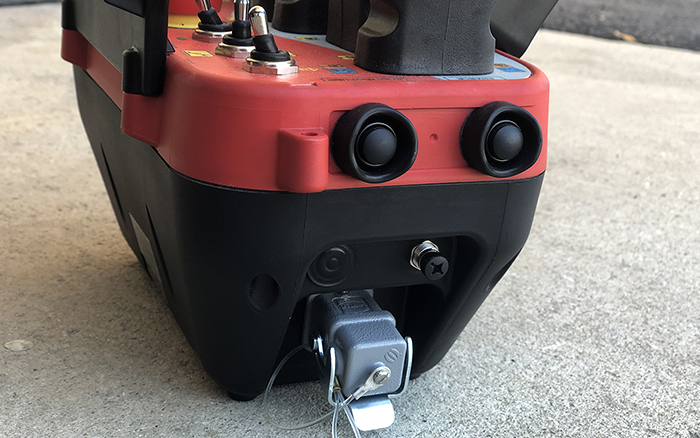

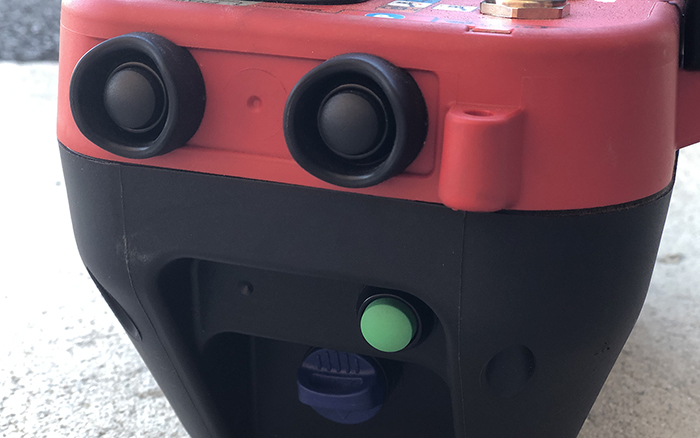

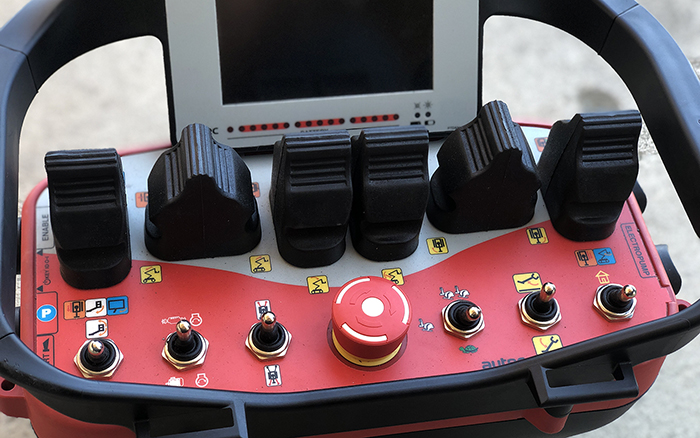

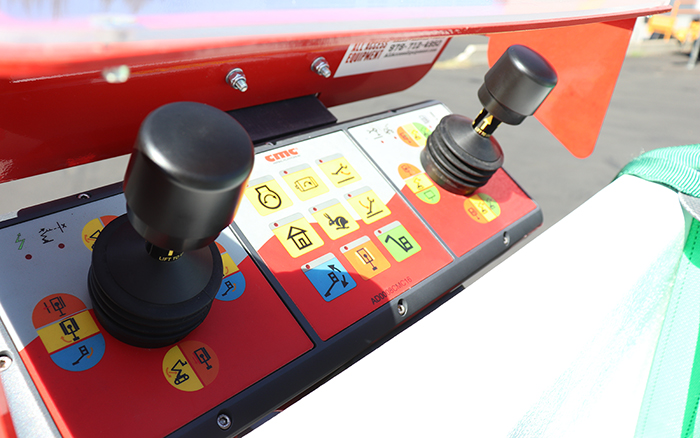

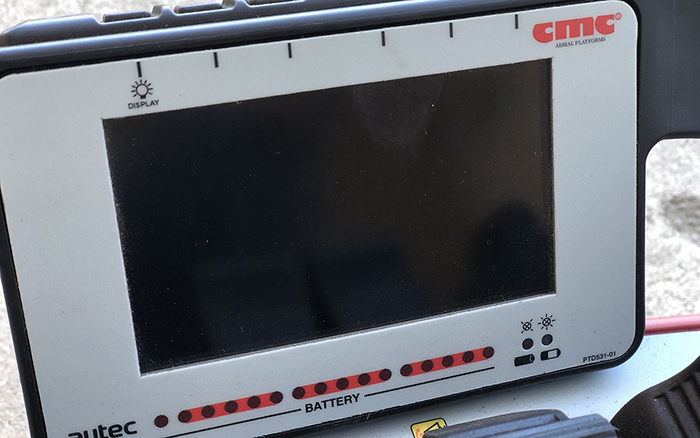

- Radio remote controls

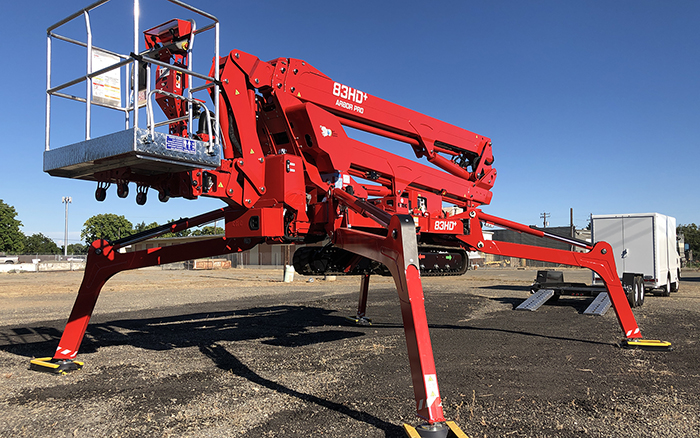

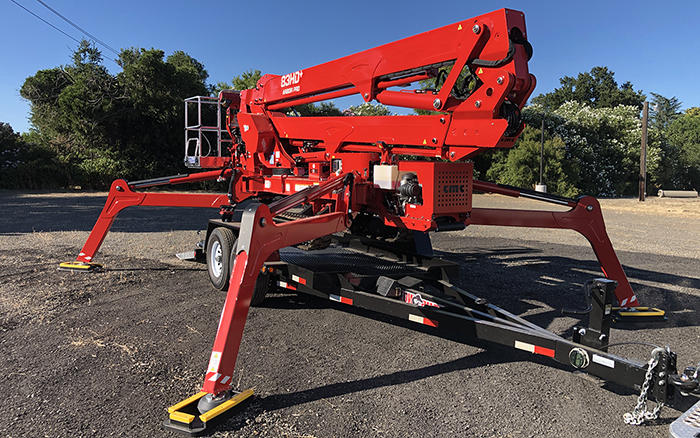

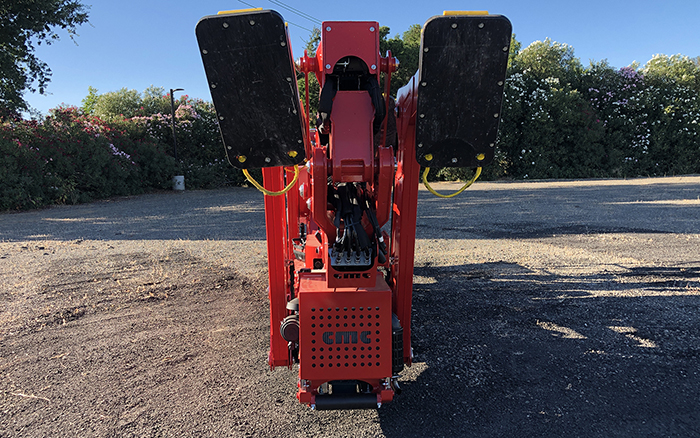

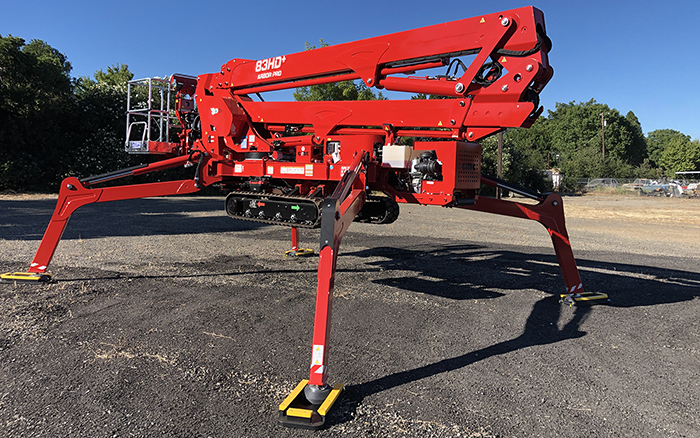

- Set of 4 sliding outrigger pads
- Outrigger piston protective covers

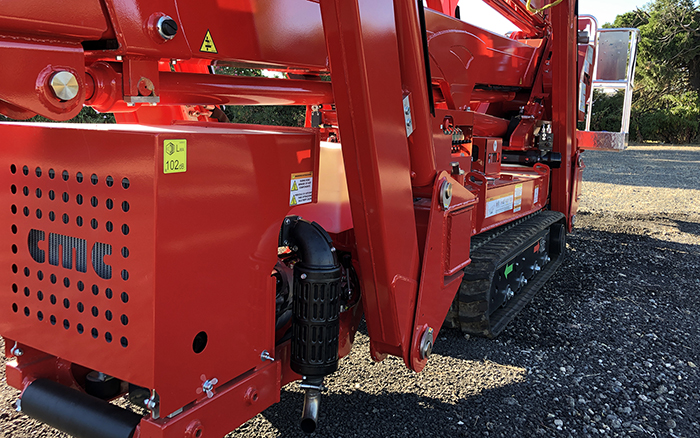

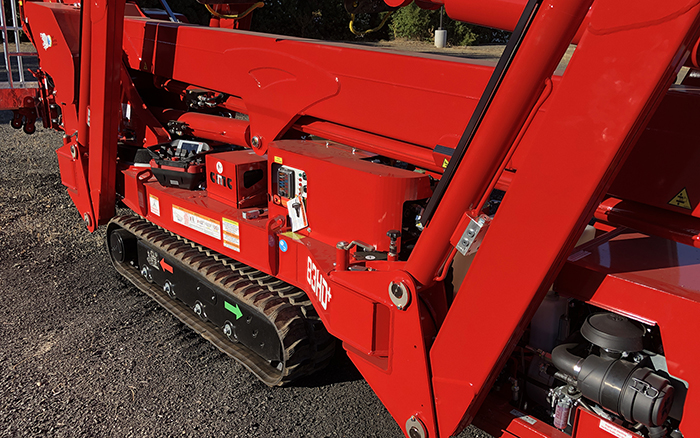

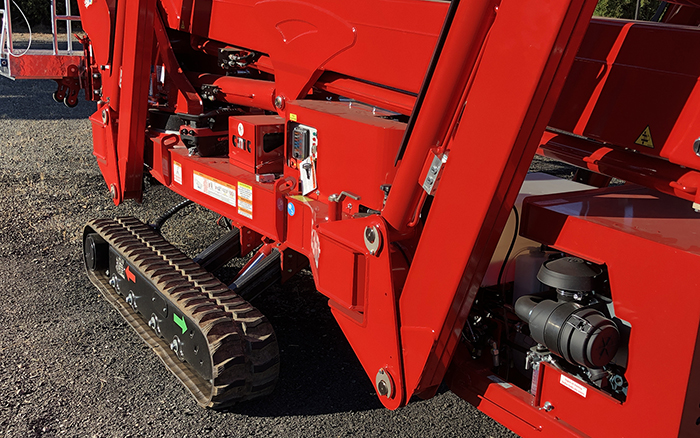

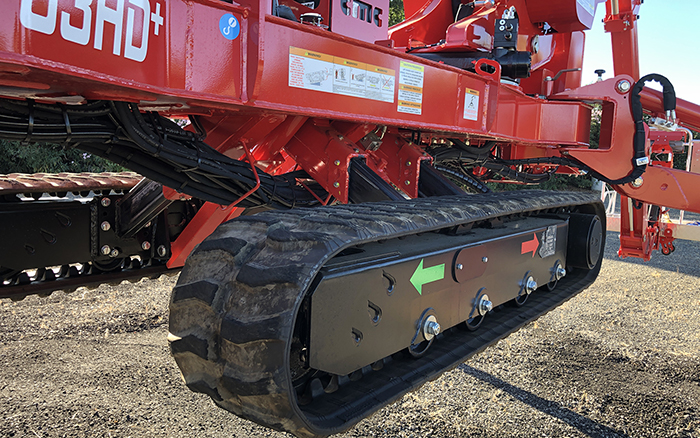

- Vertically/horizontally adjustable black rubber tracks

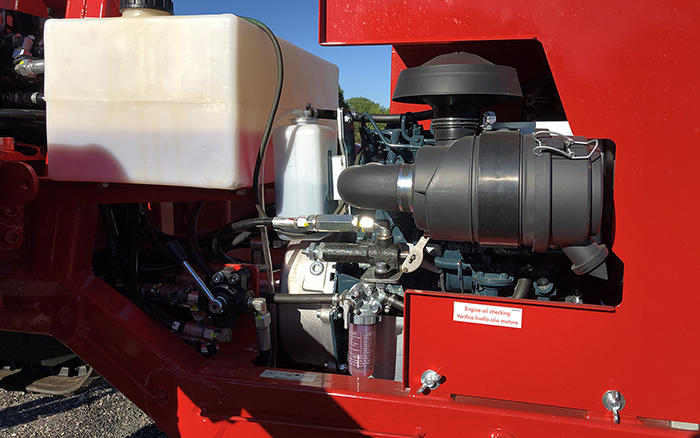

- Kubota model D-902, 21.6 HP diesel engine

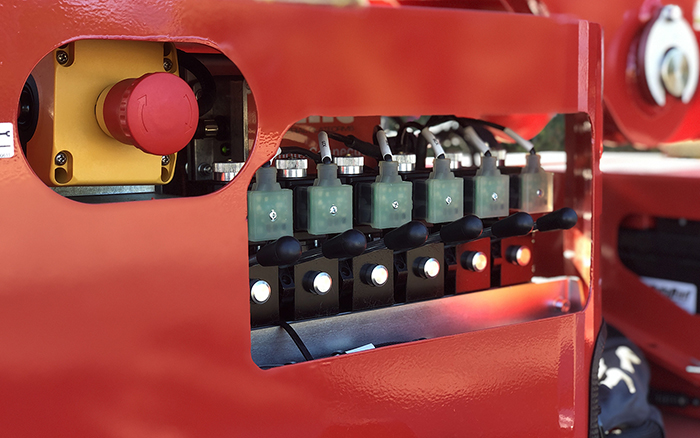

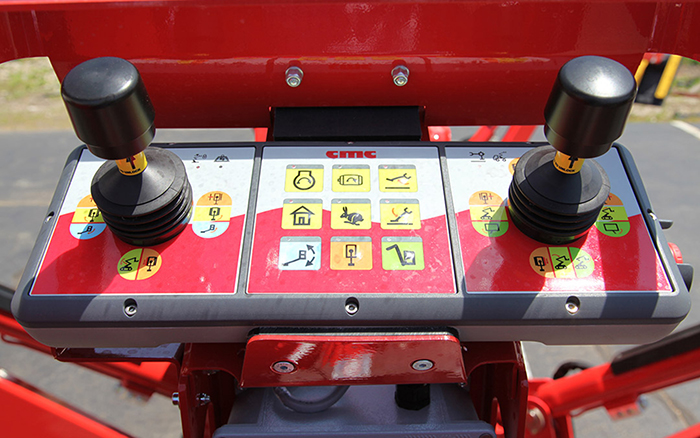

- Hardwired MOBA basket control station

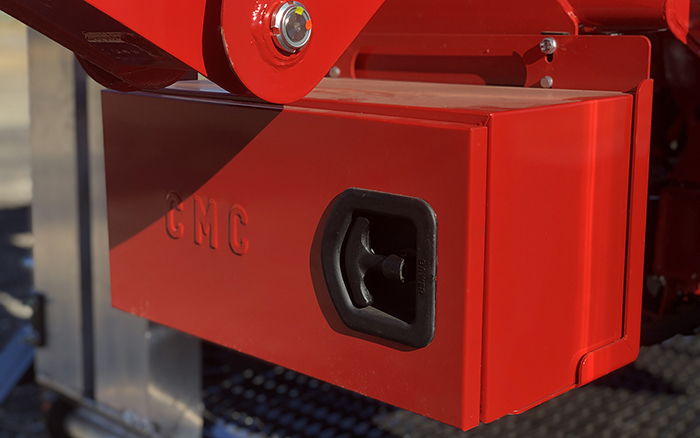

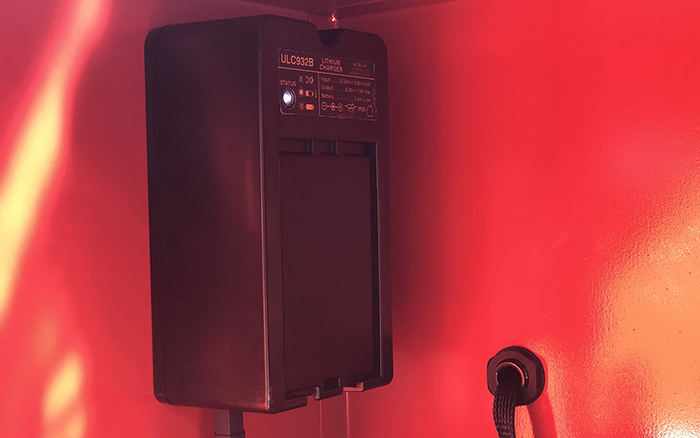

- Storage box with on-board battery charger for radio remote
- 12V Emergency battery let down system
Specifications
- Jib movement 90°
- Turret rotation +/- 400°
- Basket rotation +/- 90°
- Maximum slope to stabilize 19° (34%)
- Lightweight 8,500 lbs
- Maximum slope approach angle 14° (25%)
- Gradeability (maximum climbing angle) 19° (34%)
- Travel speed 0-3 mph (three speeds)
Safety
- ANSI (TUV) and CSA certified
- Meets & exceeds OSHA safety requirements
- Emergency stop button in reach of operator at all times
- Lock valves on all hydraulic cylinders
- Waterproof safety switches
- Redundant safety monitoring systems
- Basket weight sensor & overload alarm: meets & exceeds new OSHA requirement
- Lateral reach monitor and alarm for when maximum has been reached

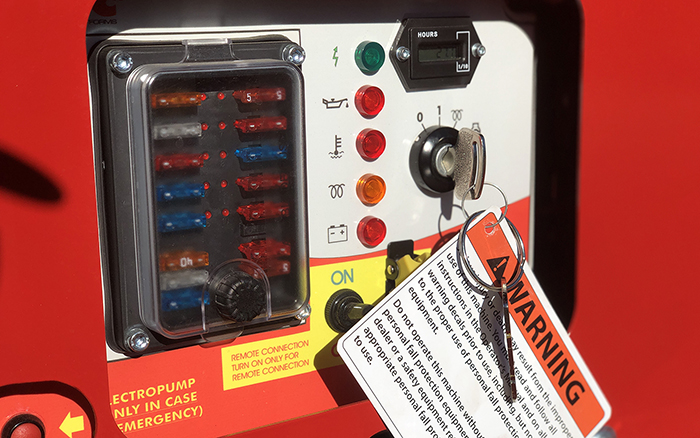

- Easy to use self-diagnostic LED display
- Automatic chassis self-leveling
- Automatic boom park
- 12V Emergency let-down system
Warranty
- 1 & 3 years warranty. 1 yr “bumper to bumper” and
3 yrs on certain components. Unlimited use hours. - Detailed owners maintenance and use manual,
including parts and service diagrams - One (1) Fall arrest safety harness
